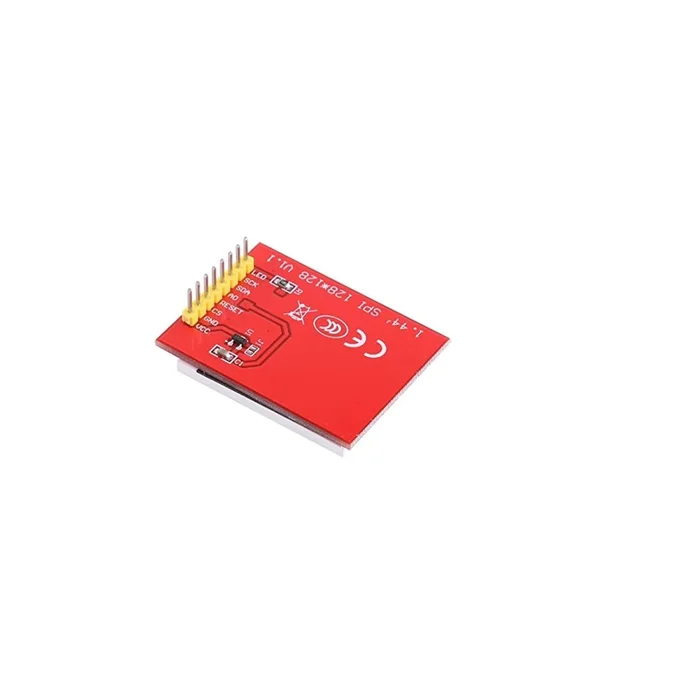

1.44 red serial LCD display module 128*128 tft color screen PCB adapter

Description

This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since thedisplay uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind ofmicrocontroller.Even a very small one with low memory and few pins available!

The 1.44 display has 128128 color pixels. Unlike the low cost Nokia 6110 and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735S) can display full 16-bit color using our library code.

This 1.44 inch TFTLCDColor Screen Module SPI Interface has 128 x 128 resolution and 262 colors,it uses SPI interface to communicate with the controller such as Arduino, it is the best upgrading of the Nokia5110.

The breakout has theTFT displaysoldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

---

Features :

1. TFT color screen, the effect is far better than other small CSTN screen
2. Fully compatible and alternative 5110 interface
3. Onboard LDO, support 5V/3.3V input voltage

---

Specification:-

Item Type:

Display

Display Size (Inch):

1.44

Resolution

128128

Interface

SPI

PCB Size ( L x W ) mm

44 x 30

Shipping Weight 0.07 kg Shipping Dimensions 7 6 4 cm

Package Includes :

1 x 1.44 red serial LCD display module 128*128 tft color screen PCB adapter
