Description
Description: –

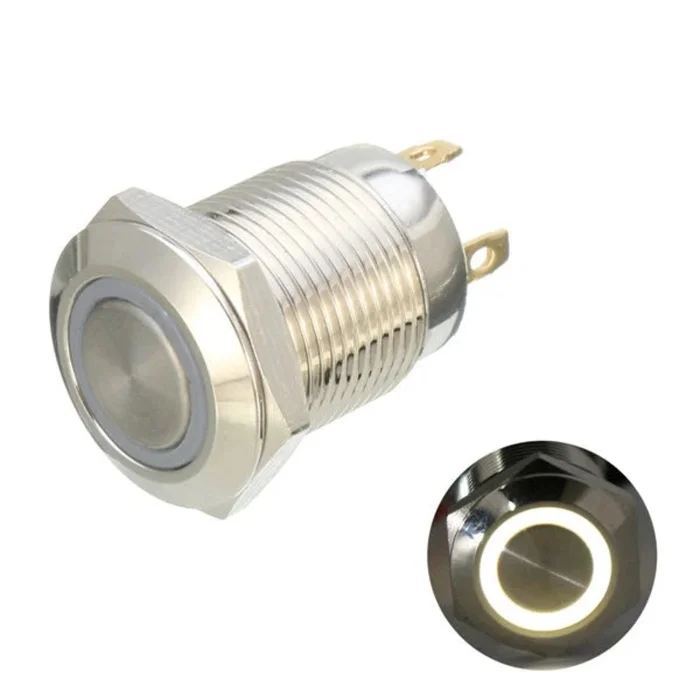

This Self-lock Non-Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated White LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose
This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again.A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colourful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards.
Theswitchcomes Stainless steel body with an IP67 protection rating to provide the best environmentalprotection and long operational life.This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V.
Please note: In case of any Customization, before ordering contact sales team on[email protected]
Specification: –
Operating Voltage (VDC)
12
Max. Operating Current (mA)
2A MAX
Light Color
White
On/Off Function
Push to ON and Push to OFF
Switch Type
Momentary/Latching
Mounting Hole Diameter (mm)
12 mm
Contact Type
Solder Type
Contact Material
Silver Alloy
Contact Resistance
50 M
Insulation Resistance (M)
1000
Operating Temperature Range (C)
-20 to 55
Operation Force
About 3-5N
Operation Stroke
2-5mm
Body Material
Stainless Steel and Plastic
Mech. & Electrical Lifecycle
50000
Protection Standard
IP66
Dimensions in mm (LxWxH)
26 x 14 (Length x Head Dia)
Weight (gm)
6
Shipment Weight
0.012 kg
Shipment Dimensions
8 5 2 cm
Package Includes:
1 x 12mm 12V Ring Light Self-Lock Metal Push-button Switch-White Light
