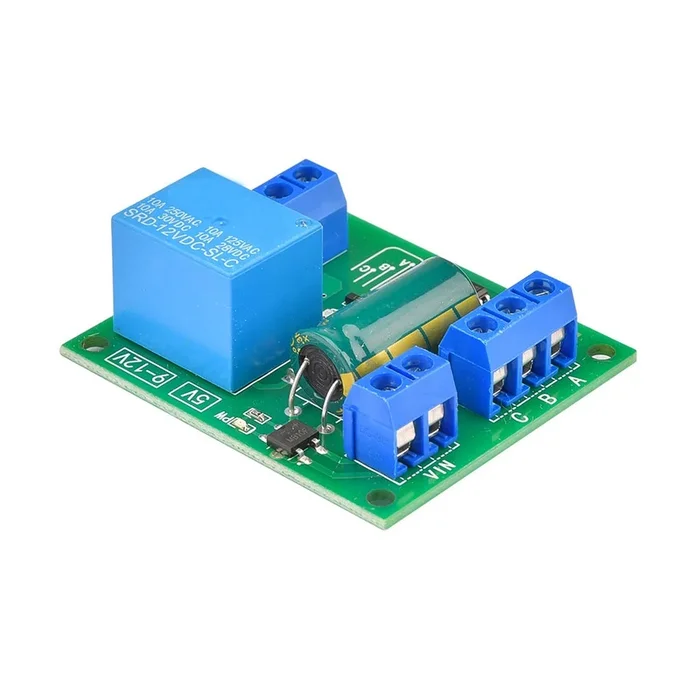

12V Water Level Automatic Controller Liquid Sensor Switch Solenoid Valve Motor Pump Automatic Control Relay Board

Description

12V Water Level Automatic Controller Liquid Sensor Switch Solenoid Valve Motor Pump Automatic Control Relay Board

Application:

• Home water tower automatic water supply system
• Aquarium Fish tank Water Changer System
• Conductive liquid automatic control
• Automatic feeding system for poultry and livestock
• Farm automatic water supply system
• And other occasions that require automatic water supply and water exchange.
• Solenoid valve water pump motor automatic control.

Feature:-

• Widely used
  2. Easy to operate and use
  3. Small size, easy to carry
  4. Stable performance and long service life
  5. Voltage specifications can be selected as 12V


Specification:-

• Product Name: Automatic Water Level Controller

• Module size: 5 * 4.4 * 1.8cm (measured manually)

• Module function: Automatically pump water when the water level is below probe B.

• Stop pumping when the water level reaches the C probe.

• A/B/C water level sensing line can be used with ordinary wires, with the wire end exposed for 5cm. Automatically pump water when the water level is below point B

• Stop pumping when the water level is above point C

Note:

Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires

For safety, use an AC/DC power supply with good isolation

Product Include:

1x12V Water Level Automatic Controller Liquid Sensor Switch Solenoid Valve Motor Pump Automatic Control Relay Board
