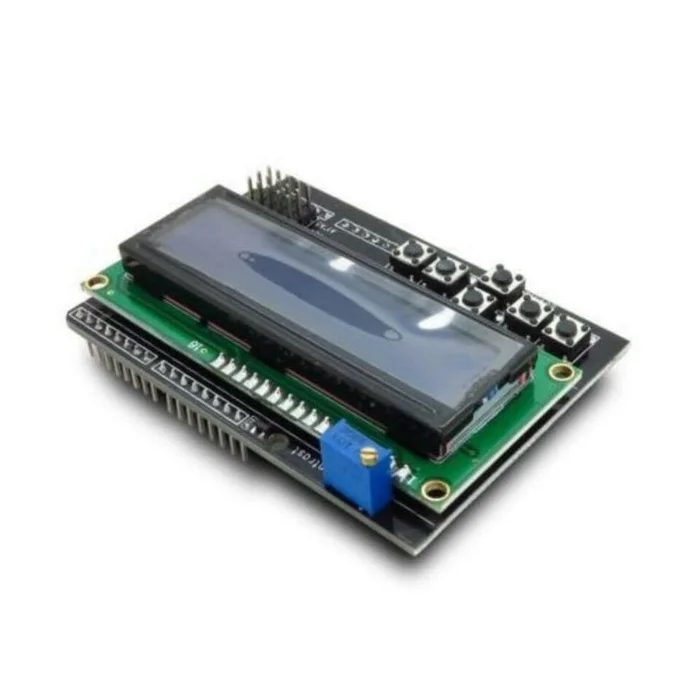

1602 LCD Board Keypad Shield Blue Backlight For Arduino Robot

Description

Suitable for Arduino main board which include theArduino UnoandArduino Leonardo. The 1602 LCD Board Keypad Shield Blue Backlight is sometimes called navigation shield because it comes with 6 momentary push buttons for menu navigation. Besides the push button, it also includes a 216 LCD.

This is a very popularLCDKeypad shield forArduinoand other variants. It includes a216 LCDdisplay and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. The onboardLEDindicates power on.

Features :

• The LCD Keypad shield is developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc.
• It consists of a 1602 white character blue backlight LCD.
• The keypad consists of 6 keys select, up, right, down, left and reset.
• To save the digital IO pins, the keypad interface only uses one ADC channel.
• The key value is read out through a 5 stage voltage divider.

Specification:

Operating Voltage (VDC):

5

Push Buttons

5

Reset Button

YES (Separate)

LCD Model

1602

Characters

16

Character Color

White

Backlight

Blue

Shield PCB Dimensions (mm)

8058

Total Height (mm)

26

Weight (g):

45

Shipping Weight 0.05 kg Shipping Dimensions 6 5 4 cm

Package Includes :

1×1602 LCD Board Keypad Shield Blue Backlight For Arduino Robot
