1K Ohm Through Hole Resistor Network (Pack of 5)

Description

Description: –

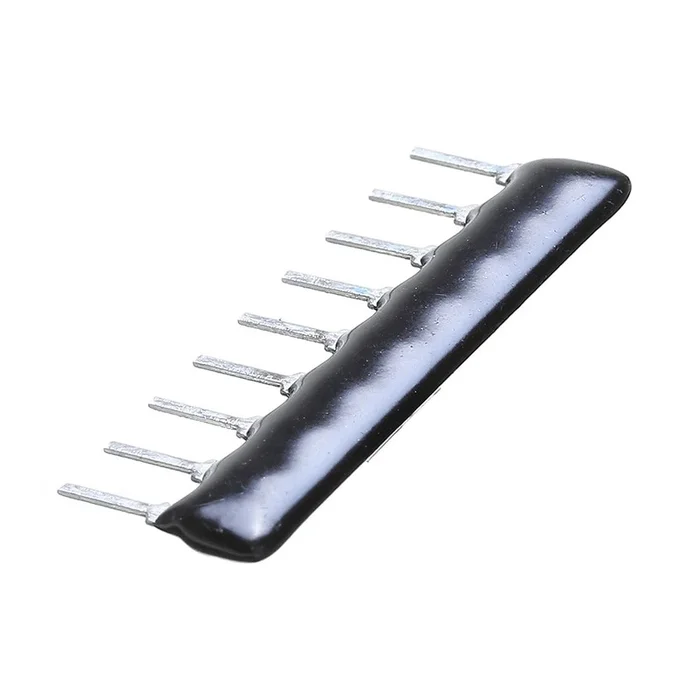

It is a 1K Ohm Through Hole Resistor Network. The resistor array is a passive nine-terminal electrical component that serves as eight 1K ohms resistances and one common ground.

Please note: In case of any Customization, before ordering contact sales team on[email protected]

Specification: –

• Resistance () : – 1k
• Tolerance(%): – 5
• Maximum Working Voltage (V) : – 100
• Maximum Overload Voltage (V) : -150
• Temperature Co-efficient: – ?200 ppm/?C
• Operating Temperature Range (C) : – 55 to 125
• Mounting Type : -Through Hole
• Length (mm) : 22
• Width (mm) : – 2
• Weight (g) : -5
• Shipment Weight: – 0.005 kg
• Shipment Dimensions: – 2 x 2 x 2 cm

Package Includes:

5 x 1K Ohm Through Hole Resistor Network.
