24V BATTERY FOR EBIKE 11000MAH 7S5P WITH CHARGE PROTECTION

Description

Eklektik Lithium-Ion Battery for E-vehicles. Very light weight and small size compared to Ni-Cd, Ni-MH and Lead acid batteries. Very long life without loosing charging capacity. Inbuilt charge protection circuit for over charge and discharge. Weight is just 1500grams.

Please note: In case of any Customization, before ordering contact sales team on [email protected]

Specification:-

• Very Small in size and weight compared to Ni-Cd, Ni-MH and Lead Acid Batteries
• Long life with full capacity for upto 1000 charge cycles
• 35 X Li-ion 3.7V 2200mAh cells (7S5P)
• Inbuilt charge protection circuit
• Low maintenance
• The battery can be charged to a maximum of 29.4 V on full charge.
• The battery will work within a voltage range of 22.4 V to 29.4 V.
• The BMS will cut off the battery at approx. 22.4 V to prevent over-discharging.
• Maximum safe charging current is 7000 mA.
• Recommend charging current is maximum 2200mA for longer life
• One wire each of battery positive(+ terminal) and battery negative(- terminal) will be provided as output of the battery.
• The charging and discharging of battery is to be done through the same wires.

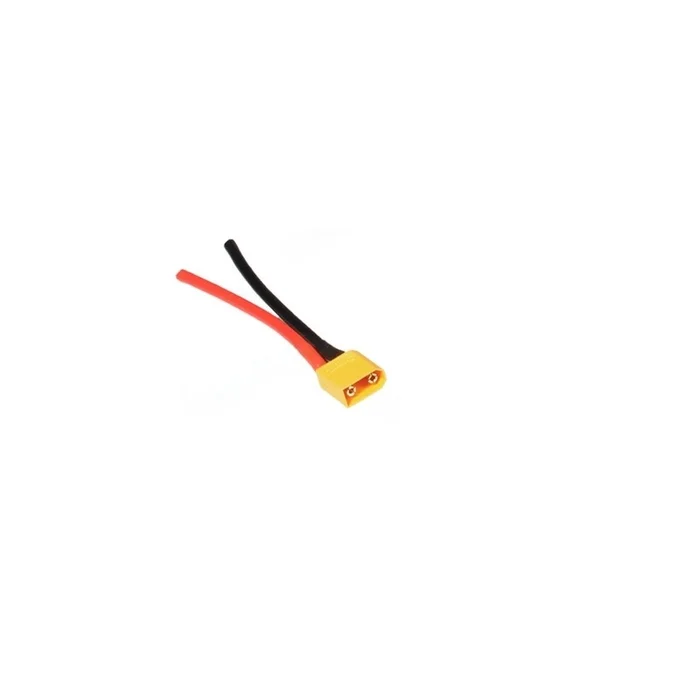

• XT60 end connectors as per image are provided with the battery for easy connections.

Package Includes:

1 x 24V BATTERY FOR EBIKE 11000MAH 7S5P WITH CHARGE PROTECTION
