250W Electric Wheelchair Powertrain PMDC Motor – SCD2-A

Description

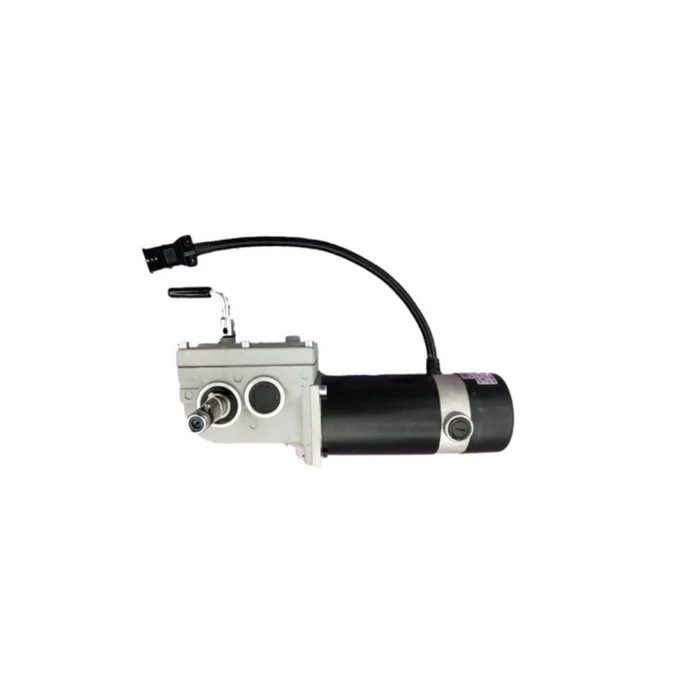

The SCD2-A 250W 24V PMDC Right-Angle Gear Drive Motor is a compact, high-performance power unit designed for integration into light electric vehicles and custom transport systems. It features a durable gear reduction system (19:1 ratio) for high torque output, low noise operation (60 dB), and a built-in electric brake for controlled stopping.
This motor is ideal for use in electric carts, compact transport vehicles, scooters, buggies, tricycles, and other small EV applications. Its reversible rotation capability and integrated safety protectionsreverse-voltage, over-current, and phase inversionensure reliable operation in demanding environments.

Key Features:

• High-efficiency PMDC motor with right-angle gear drive

• 24V DC operating voltage

• 19:1 gear reduction for high torque output

• Low noise operation (60 dB)

• Electric brake with manual release mechanism

• Reverse-voltage, over-current, and phase inversion protection

• Compact and durable construction

Specifications:

Parameter Value Operating Voltage (VDC) 24 Output Power (W) 250 Dimension 1 (mm) 313 Dimension 2 (mm) 82 No-load Current (A) 3.6 Motor Speed 5% (RPM) 2650 No-load Output Speed (RPM) 150 Gear Ratio 19:1 Sound Level (dB) 60 Brake Torque (Nm) 33.4 Rated Torque (Nm) 16.95 Motor OD (mm) 79 Output Shaft OD (mm) 17 (with 6mm keyway & key) Weight 15.5 lbs Efficiency (%) 80

Package Includes:

1 250W 24V PMDC Right-Angle Gear Drive Motor SCD2-A
