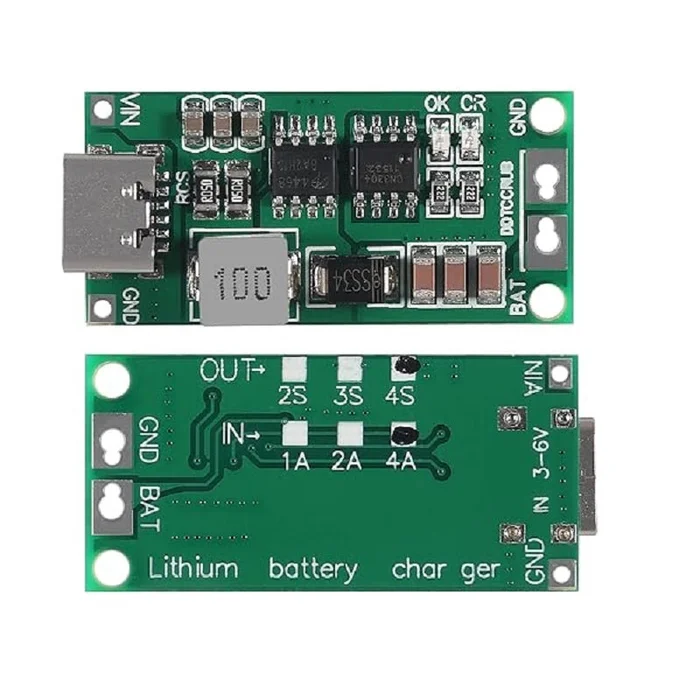

3S 12.6V 2A 18650 Lithium Battery Charger Module Type C

Description

The 3S 12.6V 2A 18650 Lithium Battery Charger Module (Type-C) is a compact and efficient charging solution designed for 3-cell (3S) lithium-ion battery packs, typically made with 18650 cells connected in series. This module ensures safe and balanced charging, making it ideal for DIY battery packs, portable electronics, robotics, e-bikes, power banks, and other lithium-ion powered applications. Equipped with a modern USB Type-C input port, it offers enhanced compatibility and convenience for users, eliminating the need for bulky adapters.

It features overcharge protection to safeguard your batteries, automatic cell balancing to maintain long-term performance, and LED indicators for real-time charging status. Its small footprint allows easy integration into compact designs, while its lightweight build makes it suitable for portable and embedded systems.

---

Applications:

• DIY 3S 18650 lithium battery packs

• Portable electronics and embedded systems

• Robotics and IoT projects

• E-bikes, scooters, and RC applications

• Power banks and backup power supplies

---

Key Features:

• Type-C USB Input for universal compatibility with modern charging cables

• Overcharge Protection to ensure cell safety and longevity

• Automatic Charging & Balancing for consistent performance across all cells

• LED Indicators for charging progress (Red: Charging, Green: Fully Charged)

• Compact & Lightweight Design for easy integration into portable projects

---

Specifications:

Parameter Value Output Voltage 12.6V DC Output Current 2A Battery Configuration 3S (3 18650 lithium-ion cells in series) Charging Current 2A Input Voltage 5V DC Input Port USB Type-C Length 25 mm Width 18 mm Height 6 mm Weight 6 g Operating Temperature -20C to 60C Battery Type 18650 Lithium-ion Cells

Package Includes:

• 1 3S 12.6V 2A 18650 Lithium Battery Charger Module (Type-C)
