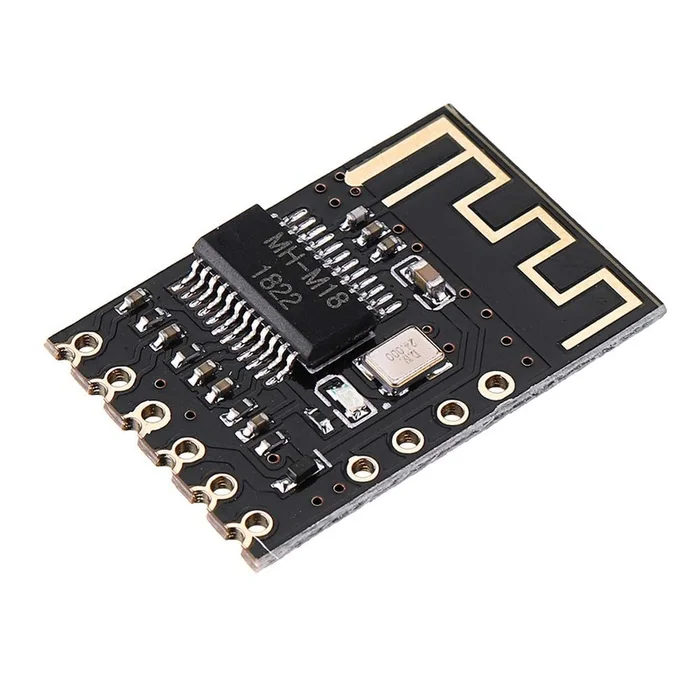

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode

Description

This MH-M18 Wireless Bluetooth Audio Receiver Board is a low power design solution, which supports the latest Bluetooth 4.2 transmission.
Convert your old speakers into a Bluetooth equipped speaker with the help of this module.
With a maximum range of 20 meters.

Applications:

• Conversion of old speakers into Bluetooth speaker
• DIY Bluetooth speakers

Features:

• Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
• Support Bluetooth Protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
• Maximum Transmission Distance of 20 meters.
• Can be powered via lithium Battery.

Specification:-

• Model: MH-M18
• Bluetooth Version: Bluetooth 4.2
• Operating Voltage (VDC): 3.7 ~ 5
• Max. Operating Current (mA): 20
• Transmission Distance: 20 meters
• Operating Temperature (?C): -40 to 85
• Sensitivity: -87dbm
• Length (mm): 23
• Width (mm): 11
• Height (mm): 2
• Weight (gm): 1
• Shipment Weight: 0.005 kg
• Shipment Dimensions: 6 ? 8 ? 3 cm

Package Includes:-

1x MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode
