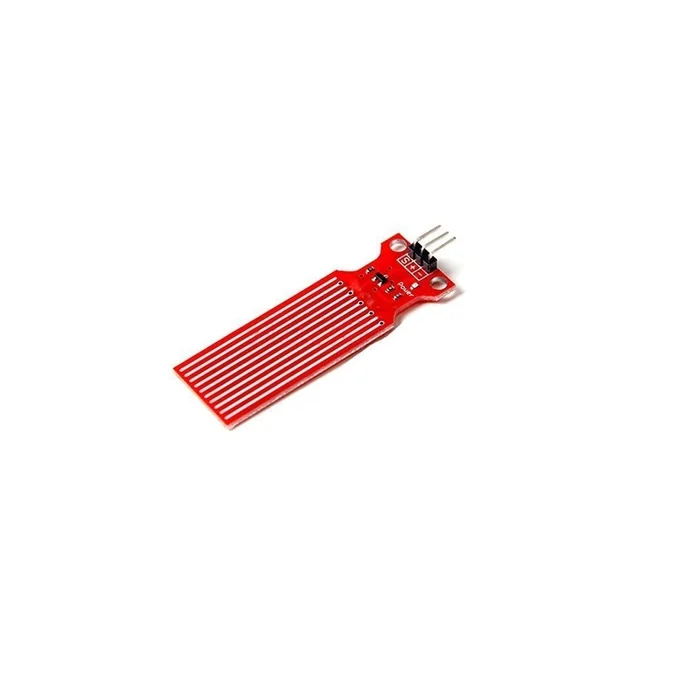

Water Level Sensor Depth of Detection Water Sensor for Arduino

Description

TheWater Level Depth Detection Sensor for Arduino has Operating voltage DC3-5V and Operating current less than 20mA.The Sensor is the Analog type which producesanalog output signals according to the water pressure with its Detection Area of 40x16mm.

TheWater LevelSensor is an easy-to-use and cost-effective with high level/drop recognition sensor by having a series of parallel wires exposed traces measure droplets/water volume in order to determine the water level.

Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.

Specification:

Operating Voltage (VDC):

3 ~ 5

Max. Operating Current (mA)

20

Detecting Range

4016 mm

Operating Temperature (C)

-10 to 30

Humidity Range

10% -90% non-condensing

Length (mm):

60

Width (mm):

20

Height (mm):

1.5

Weight (g):

4

Shipping Weight 0.005 kg Shipping Dimensions 9 6 3 cm

Package Includes :

1 xWater Level Sensor Depth of Detection Water Sensor for Arduino
