XH-M452 xh m452 upgraded 4 Wire High Sensor Temperature Humidity Controller for Incubator With Indicators Hygrometer Automatic

Description

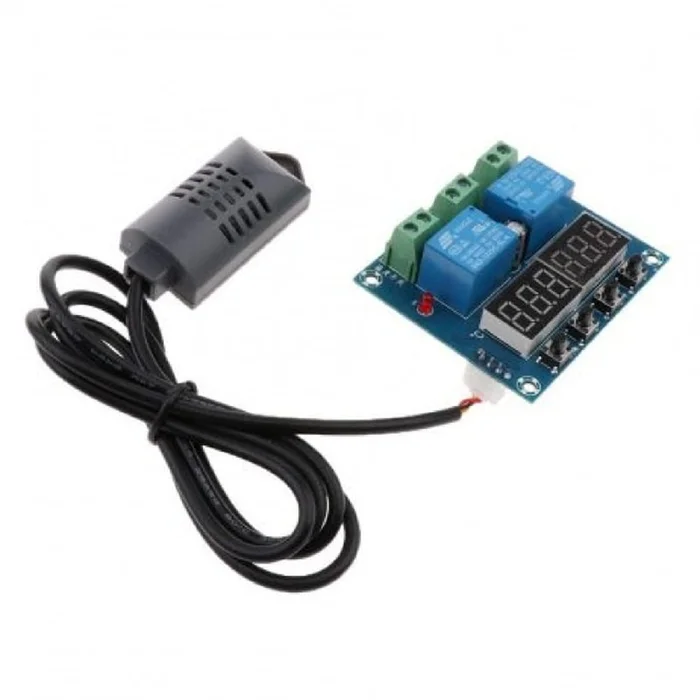

Get the all-newDC 12V XH-M452Temperature And Humidity Controller Module Digital Display. It has a very High Accuracy Dual Output Automatic Constant Temperature And Humidity Control Board.

Humidity Control

1. Set to start humidity: long-press the + key, start the humidity value flashing, set by + / key launch humidity value
2. Set stop humidity: long press to stop humidity value, set by + / key to stop the humidity value

Temperature Control

1. Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
2. Setting the temperature :Normal display mode, long press button for 3 seconds, stop numerical flashing temperature, press the + / key set value
3. Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
4. Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / key
5. Setting Stop temperature: long press button, stop flashing temperature, set stop temperature by + / key

Features ofXH-M452 Temperature and Humidity Controller Module:-

Power supply: DC 12V

Temperature measurement range:-40~120

Humidity range0~100%RH

Control precision0.1 0.1%RH

Test probe Integrated sensor

Specifications:

Model XH-M452 Voltage DC 12V Temperature Range 0% to 100%RH Control Accuracy 0.1C, 0.1RH Detector probe Integrated sensor Output type Relay output Output capacity up to 10A Length(mm) 65 Width(mm) 55 Height(mm) 28 Weight(g) 69g (with sensor)

Package Includes:

1x XH-M452 xh m452 upgraded 4 Wire High Sensor Temperature Humidity Controller for Incubator With Indicators Hygrometer Automatic
